The BarnColor series
– Simplicity to Perfection
Designed to be a cost-effective solution for sending and receiving multiple signals both directions over an opticalCON DUO fiber cable, BarnColor is the newest product line from Barnfind Technologies. Simple to use and easy to set up, we have taken all the complication away from fiber transport setup. – no technical knowledge or experience required.
Plug and play – Save time and money for on-site rigging
- No Latency
- No Compression

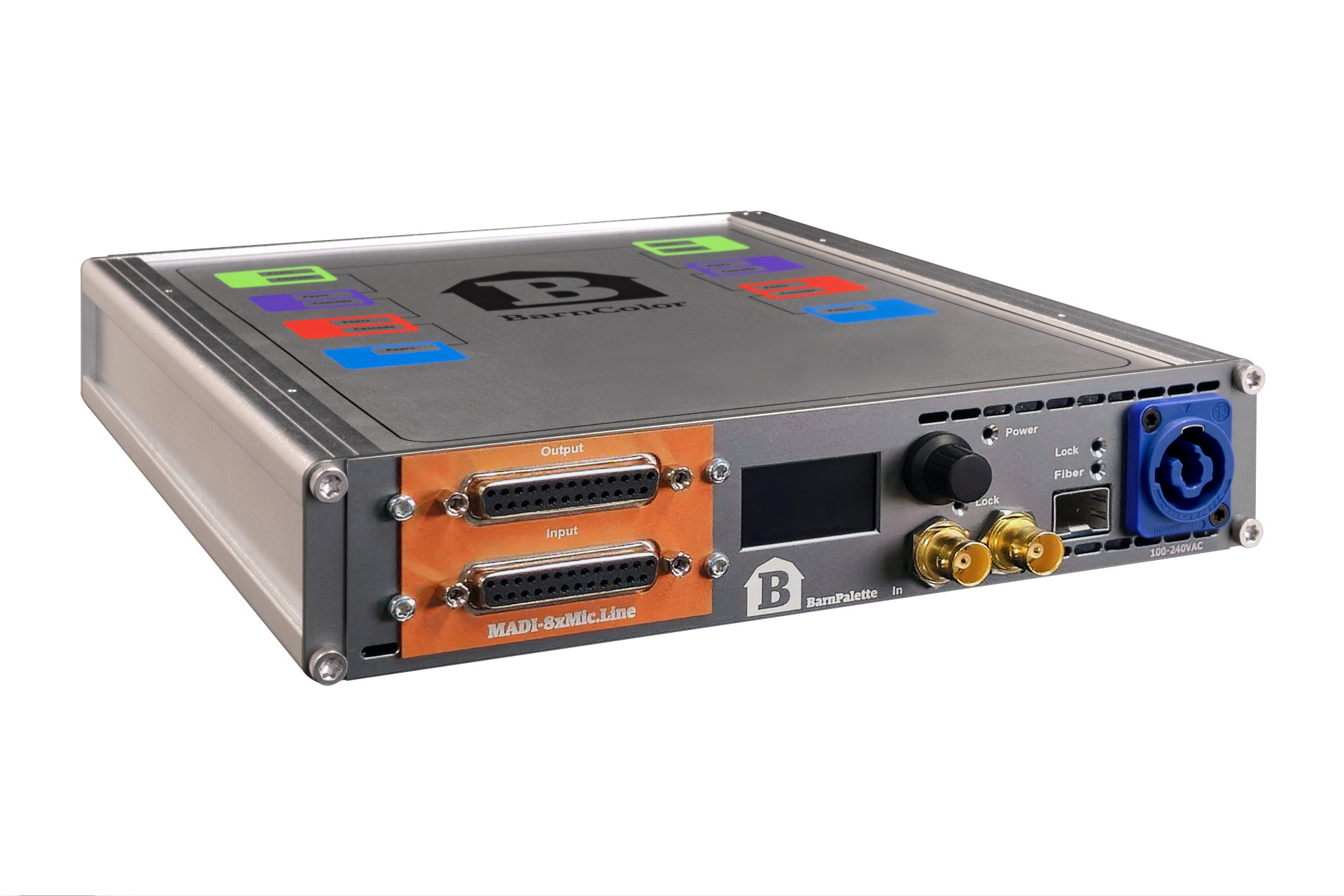

The BarnPalette-MADI
-8xLine
-8xMic-Line
-4xAES

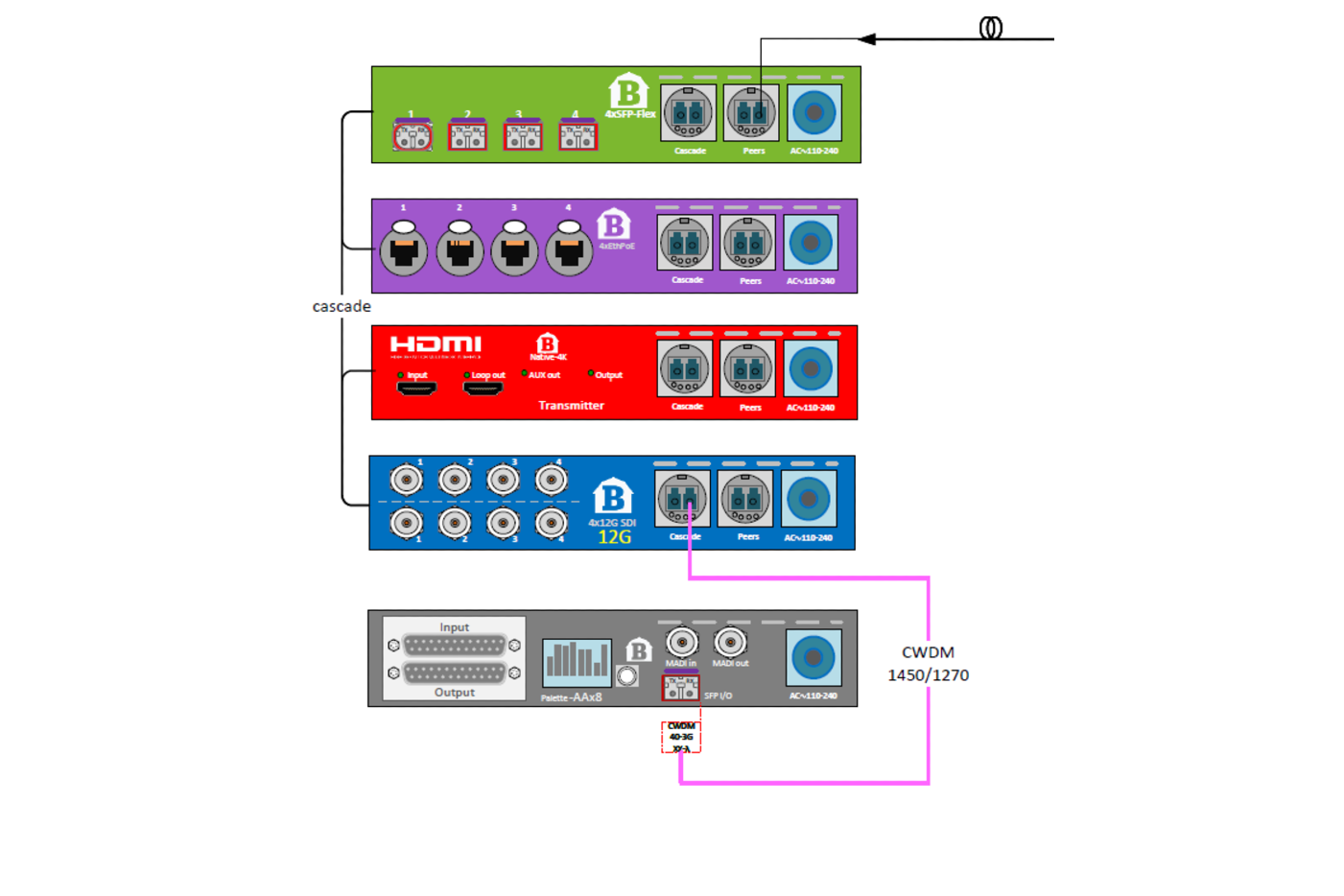

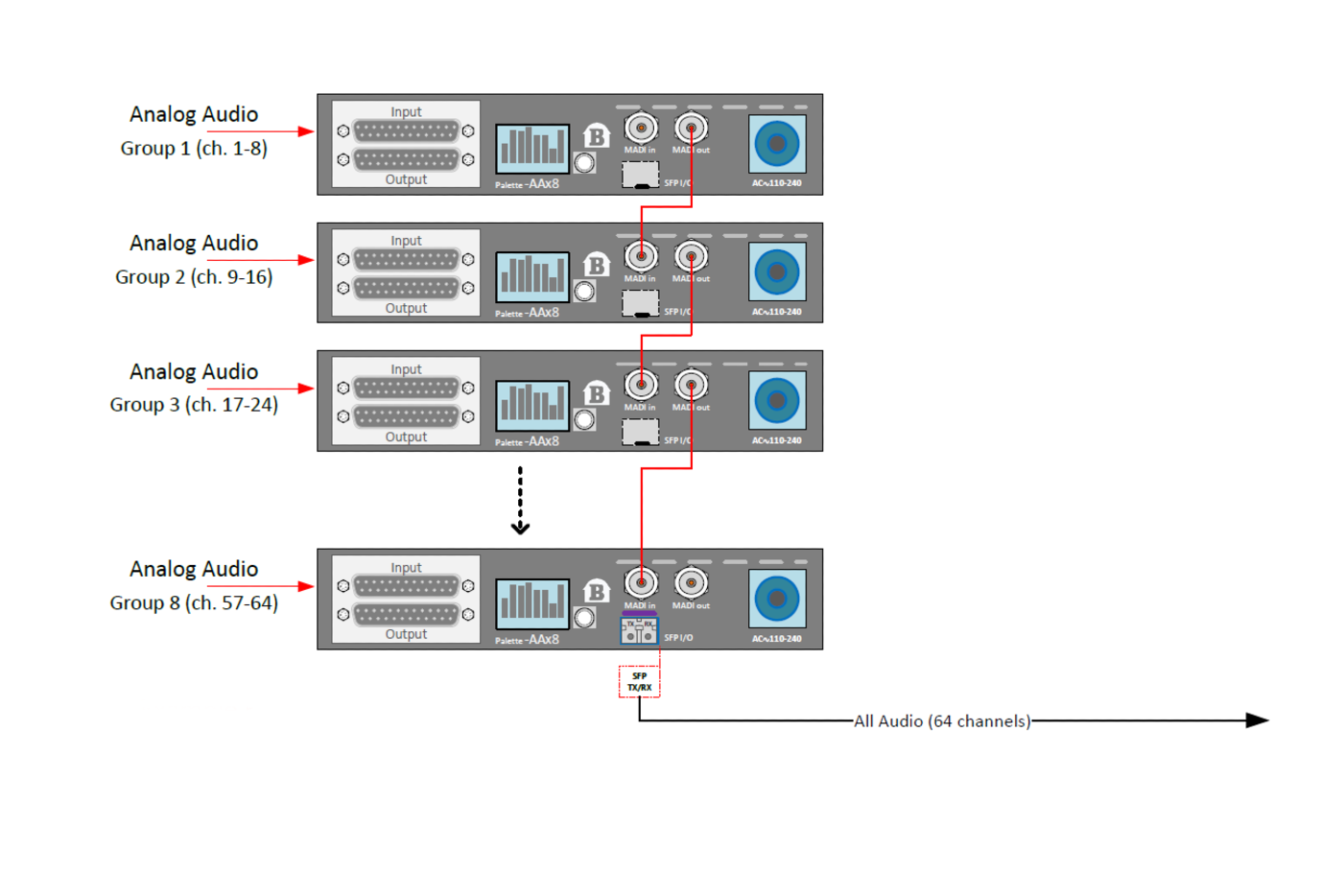

BarnPalette-MADI- offers a high-quality and robust solution for transporting analog audio over either fiber or copper. Compatible with BarnColor system or as a standalone product, each unit features 8x audio inputs and 8x audio outputs, and multiple BarnPalette-MADI units can be inter-connected. Audio signals can be flexibly mixed and routed into a 64-channel MADI signal. MADI can be sent and received both via BNC ports and SFP port (fiber).
-8xLine I/O module provides analog Line in and out audio.

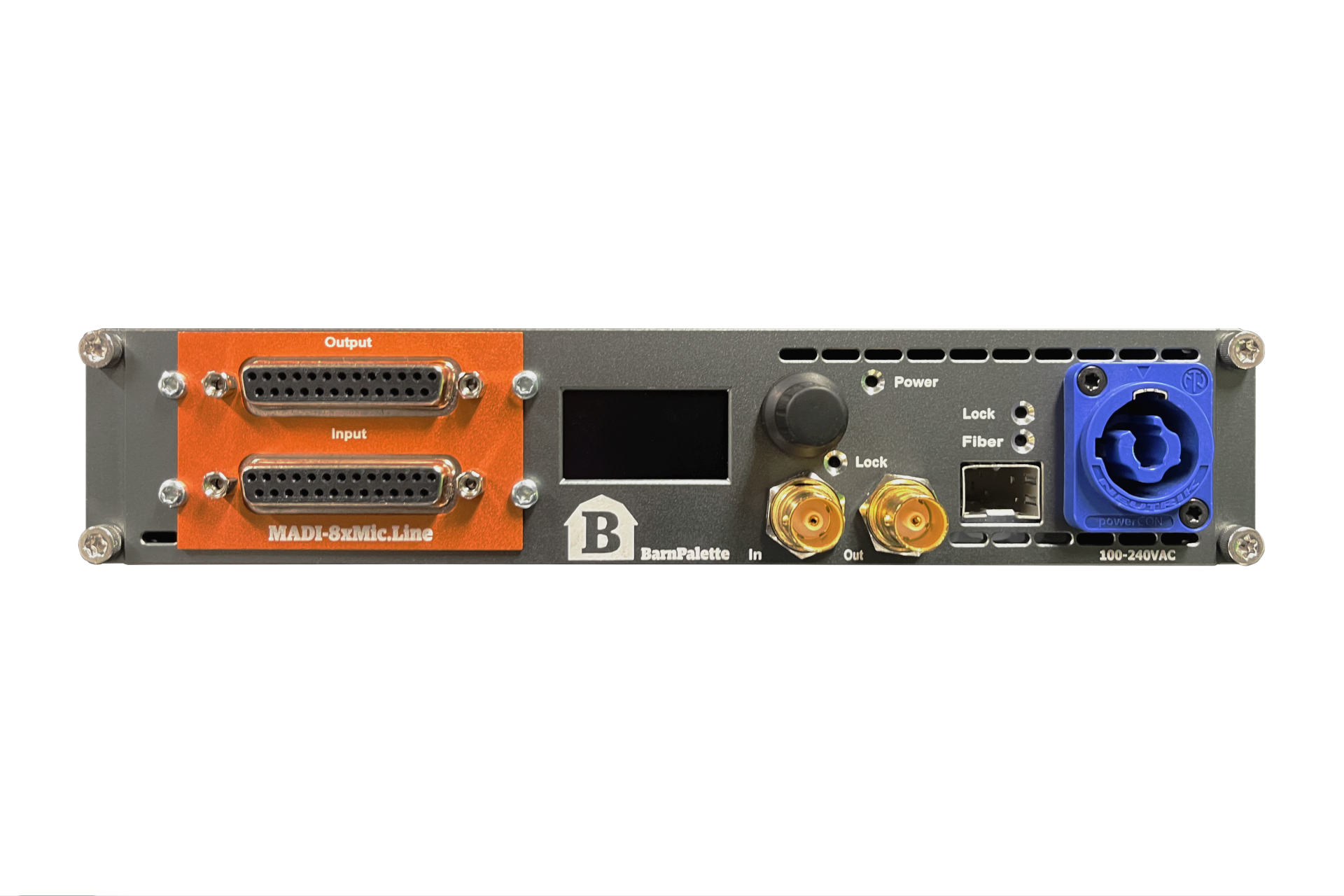

-8xMic.Line I/O module provides analog microphone level (with phantom power) in and line out audio.
-4xAES I/O module provides AES3 digital in and out.
We recommend using single mode fibers when linking the BarnColor and BarnPalette devices.
From USD 2689,- / Unit EXW Norway
Landed pricing may differ for markets outside Norway
Technical Specifications
| Physical size | 223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”) |
| Weigth | 1.4 kg |
| Power Supply: | AC 100V～240V |
| Power Consumption: | 30W |
| Power plug: | Neutrik powerCON or TRUE1 |
-8xLine I/O module – 8 channels line input/output:
| Connectors: | 2 x DSUB-25 connector (input/output)*, according to AES59 | |
| Reference Levels: | +15 / +18 / +24 dBu via jumper | |
A/D: | SNR: | < -117,6 dB RMS (20 Hz – 20 kHz) / -119,9 dB(A) |
| THD @ -1 dBFS: | < -119 dB | |
| Frequency response: | < -0,15 dB (10 Hz) / -0,15 dB (20 kHz) | |
D/A: | SNR: | -116,8 dB RMS (20 Hz – 20 kHz) / -119,5 dB(A) |
| THD @ -1 dBFS: | -109 dB | |
| Frequency response: | -0,5 dB (10 Hz) / -0,15 dB (20 kHz) | |
-8xMic.Line I/O module – 8 channels mic input/line output:
| Connectors: | 2 x DSUB-25 connector (input/output)*, according to AES59 | |
A/D: | PAD: | -9 dB, phantom power (+48 V, switchable) |
| Input sensitivity: | -55 dBu to +24 dBu EIN: -118 dBu | |
| THD @ -1 dBFS: | -113 dB | |
| SNR: | -115 dBFS (20 Hz – 20 kHz) / -118 dB(A) @ 0dB Gain | |
| Frequency response: | -0.5 dB (10 Hz to FS/2) | |
D/A: | Reference levels: | +15 / +18 / +24 dBu via jumper |
| THD @ -1 dBFS: | -109 dB | |
| SNR: | -116,8 dB RMS (20 Hz – 20 kHz) / -119,5 dB(A) | |
| THD @ -1 dBFS: | -109 dB Frequency response: -0,5 dB (10 Hz) / -0,15 dB (20 kHz) | |
-4xAES I/O module – 4 ports AES3 – 8 channels:
| Connectors: | 2 x DSUB-25 connector (input/output)*, according to AES59 |
| Input Sample Rate Conversion: | Switchable |
| Sample Rate: | 44.1 kHz up to 192 kHz |
| Standard: | AES3 compliant |
Order codes:
• BarnPalette-MADI-8xLine
• BarnPalette-MADI-8xMic.Line
• BarnPalette-MADI-4xAES
• 223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”)
Weigth
• 1.4 kg
Power Supply:
• AC 100V～240V
Power Consumption:
• 30W
Power plug:
• Neutrik powerCON or TRUE1
Order codes:
• BarnPalette-MADI-8xLine
• BarnPalette-MADI-8xMic.Line
• BarnPalette-MADI-4xAES
-8xLine I/O module – 8 channels line input/output:
Connectors:
• 2 x DSUB-25 connector (input/output)*, according to AES59
Reference Levels:
• +15 / +18 / +24 dBu via jumper
A/D:
SNR:
• < -117,6 dB RMS (20 Hz – 20 kHz) / -119,9 dB(A)
THD @ -1 dBFS:
• < -119 dB
Frequency response:
• < -0,15 dB (10 Hz) / -0,15 dB (20 kHz)
D/A:
SNR:
• -116,8 dB RMS (20 Hz – 20 kHz) / -119,5 dB(A)
THD @ -1 dBFS:
• -109 dB
Frequency response:
• -0,5 dB (10 Hz) / -0,15 dB (20 kHz)
-8xMic.Line I/O module – 8 channels mic input/line output:
Connectors:
• 2 x DSUB-25 connector (input/output)*, according to AES59
A/D:
PAD:
• -9 dB, phantom power (+48 V, switchable)
Input sensitivity:
• -55 dBu to +24 dBu EIN: -118 dBu
THD @ -1 dBFS:
• -113 dB
SNR:
• -115 dBFS (20 Hz – 20 kHz) / -118 dB(A) @ 0dB Gain
Frequency response:
• -0.5 dB (10 Hz to FS/2)
D/A:
Reference levels:
• +15 / +18 / +24 dBu via jumper
THD @ -1 dBFS:
• -109 dB
SNR:
• -116,8 dB RMS (20 Hz – 20 kHz) / -119,5 dB(A)
THD @ -1 dBFS:
• -109 dB Frequency response: -0,5 dB (10 Hz) / -0,15 dB (20 kHz)
-4xAES I/O module – 4 ports AES3 – 8 channels:
Connectors:
• 2 x DSUB-25 connector (input/output)*, according to AES59
Input Sample Rate Conversion:
• Switchable
Sample Rate:
• 44.1 kHz up to 192 kHz
Standard:
• AES3 compliant
