The BarnColor and BarnPalette series

- Simplicity to Perfection

Designed to be a cost-effective solution for sending and receiving multiple signals both directions over an opticalCON DUO fiber cable, BarnColor and BarnPalette are the newest product lines from Barnfind Technologies. Simple to use and easy to set up, we have taken all the complication away from fiber transport setup. – no technical knowledge or experience required.

Plug and play - Save time and money for on-site rigging

No Latency
No Compression

The BarnPalette – Flow-3G / Flow-12G

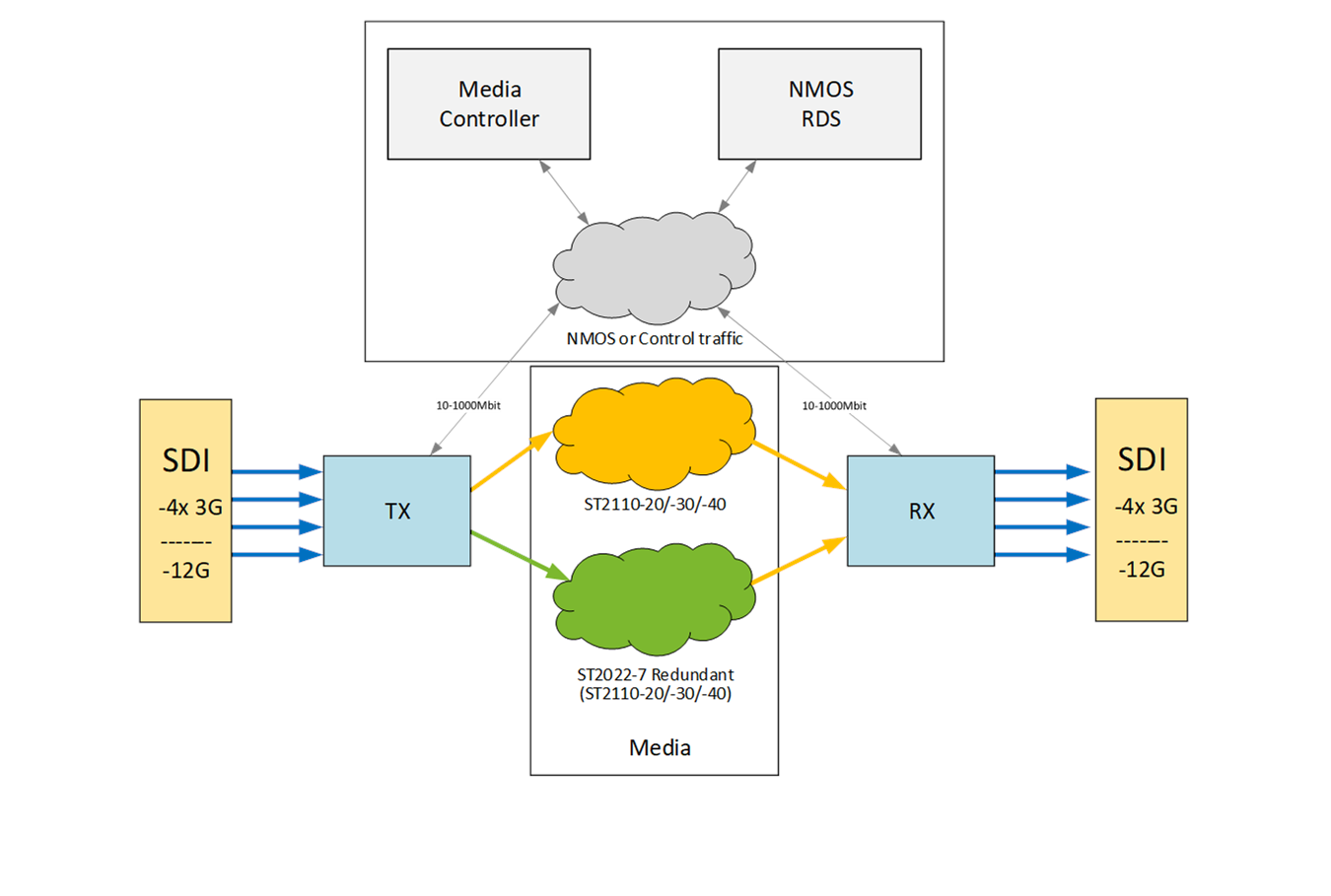

Gateway between SDI and ST-2110

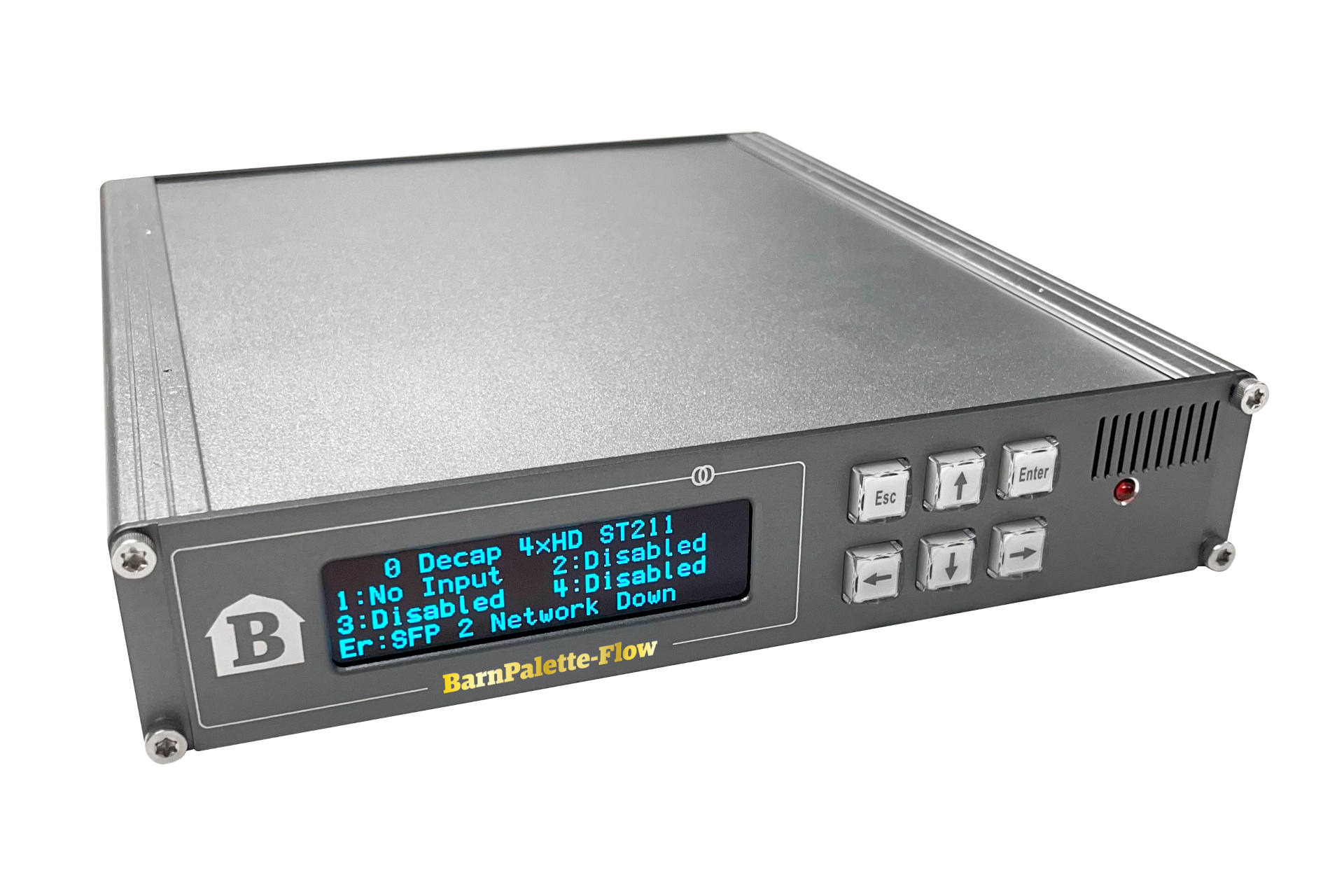

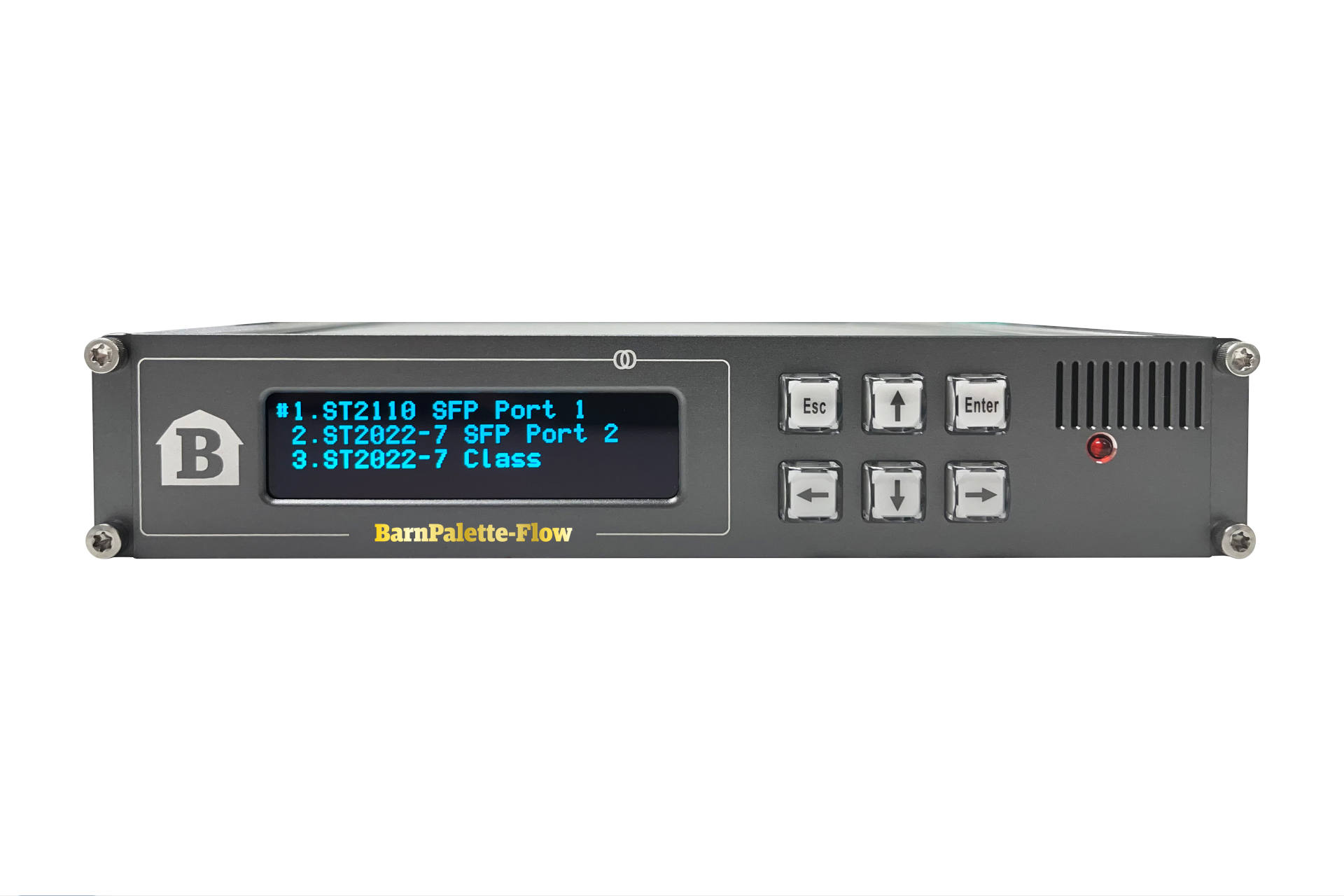

The BarnPalette-Flow-3G/12G is a converter that is capable of transmitting 4x3G-SDI or 1x12G-SDI over ST-2110 IP signals, and the IP interface supports 25G. A single unit can handle up to four signals for encapsulate (ENC) or decapsulate (DEC). Users can easily switch between ENC and DEC modes via the front panel, and also possible through WebGUI. Video, audio, and ancillary data are compliant with ST-2110, ST-2059, and NMOS IS-04/05 standards.

SDI Over IP – A hardware converter that performs the essential yet straightforward conversion between SDI and SMPTE 2110-20/-30/-40.

NMOS Compatible – Supporting NMOS IS-04/05 enables smooth integration into systems.

Full Control WebGUI – Mode changes and settings for ENC/DEC, as well as PTP synchronization status checks, can be easily managed through an intuitive GUI.

Flexible sync options – Can select between using PTP synchronization, analog GenLock or using internal generated clock.

We recommend using single mode fibers when linking the BarnColor and BarnPalette devices.

From USD 5969,- / Unit EXW Norway
Landed pricing may differ for markets outside Norway

Back to the BarnColor overview

Technical Specifications

SDI input (BNC 75Ω)	HD-SDI, 3G-SDI Level-A, ()* 12G-SDI
Chroma	4:2:2
Bit depth	10bit
Frame Rate	60/59.94/50p, 60/59.94/50i
Encoder Input Format	4x HD/3G-SDI, ()* 4K (4x 3G-SDI, 1x 12G-SDI)
Decoder Output Format	4x HD/3G-SDI, ()* 4K (4x 3G-SDI, 1x 12G-SDI)
Physical size	223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”)
Weigth	1.4 kg
Power Supply	AC 100V～240V
Power Consumption	30W
Operating Temperature	0～35 C°
Operating Humidity	20%RH～80%RH
Power plug	Neutrik powerCON or TRUE1

(*) valid for 4K/12G-SDI model

Order codes:
• BarnPalette-Flow-3G
• BarnPalette-Flow-12G

SDI input (BNC 75Ω)
• HD-SDI, 3G-SDI Level-A, (*) 12G-SDI

Chroma
• 4:2:2

Bit depth
• 10bit

Frame Rate
• 60/59.94/50p, 60/59.94/50i

Encoder Input Format
• 4x HD/3G-SDI,
(*) 4K (4x 3G-SDI, 1x 12G-SDI)

Decoder Output Format
• 4x HD/3G-SDI,
(*) 4K (4x 3G-SDI, 1x 12G-SDI)

Physical size
• 223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”)

Weigth
• 1.4 kg

Power Supply
• AC 100V～240V

Power Consumption
• 30W

Operating Temperature
• 0～35 C°

Operating Humidity
• 20%RH～80%RH

Power plug
• Neutrik powerCON or TRUE1

(*) valid for 4K/12G-SDI model

Order codes:
• BarnPalette-Flow-3G
• BarnPalette-Flow-12G
