The BarnOne series

The BarnOne series of signal transport frames provide a 32 x 32 built-in routing system with a combination of BNC and SFP I/O ports to satisfy any application. Several combinations of SFP-ports, BNCs and multiplexer are available.

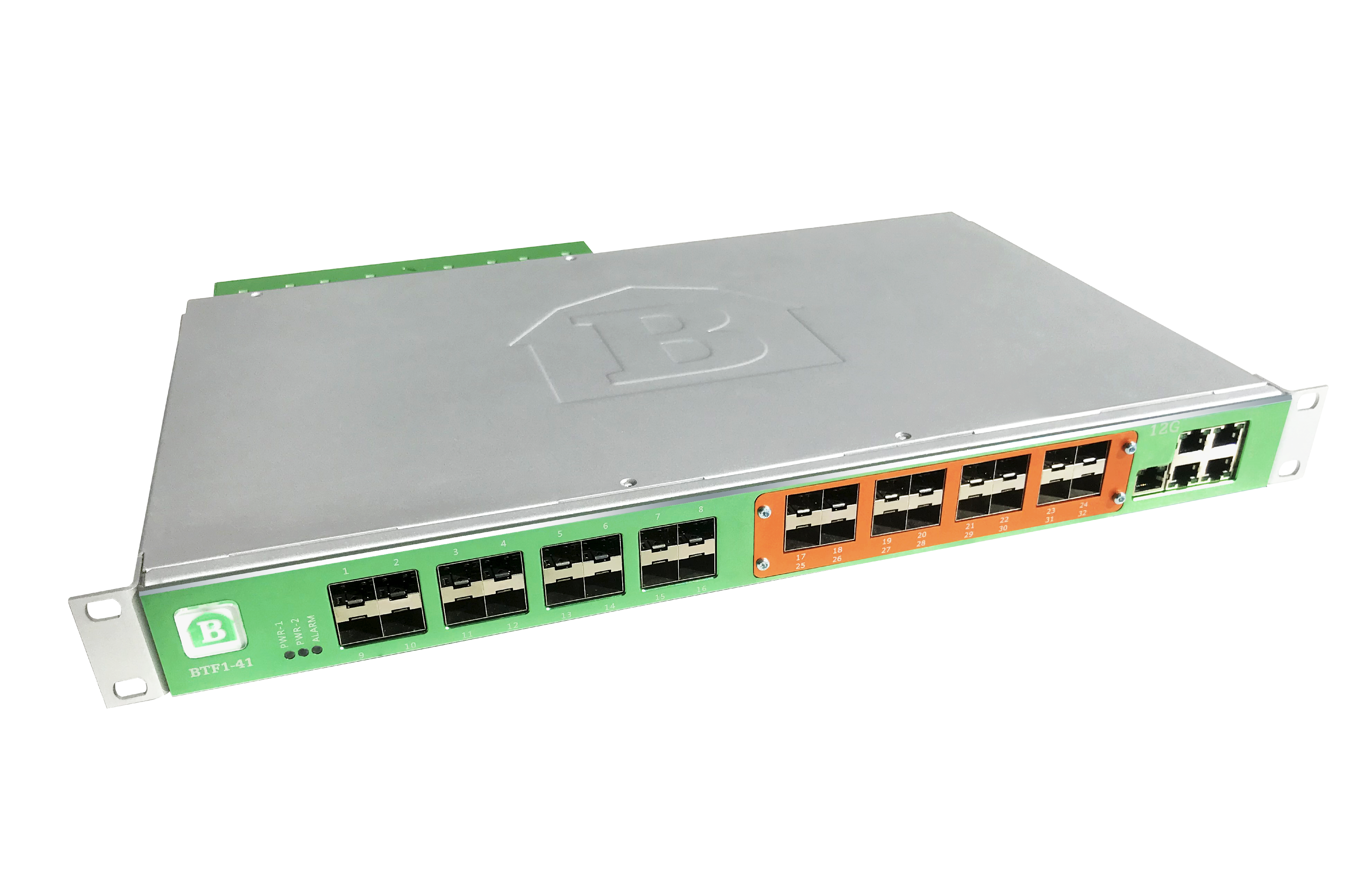

BarnOneBTF1-41-SFP-16

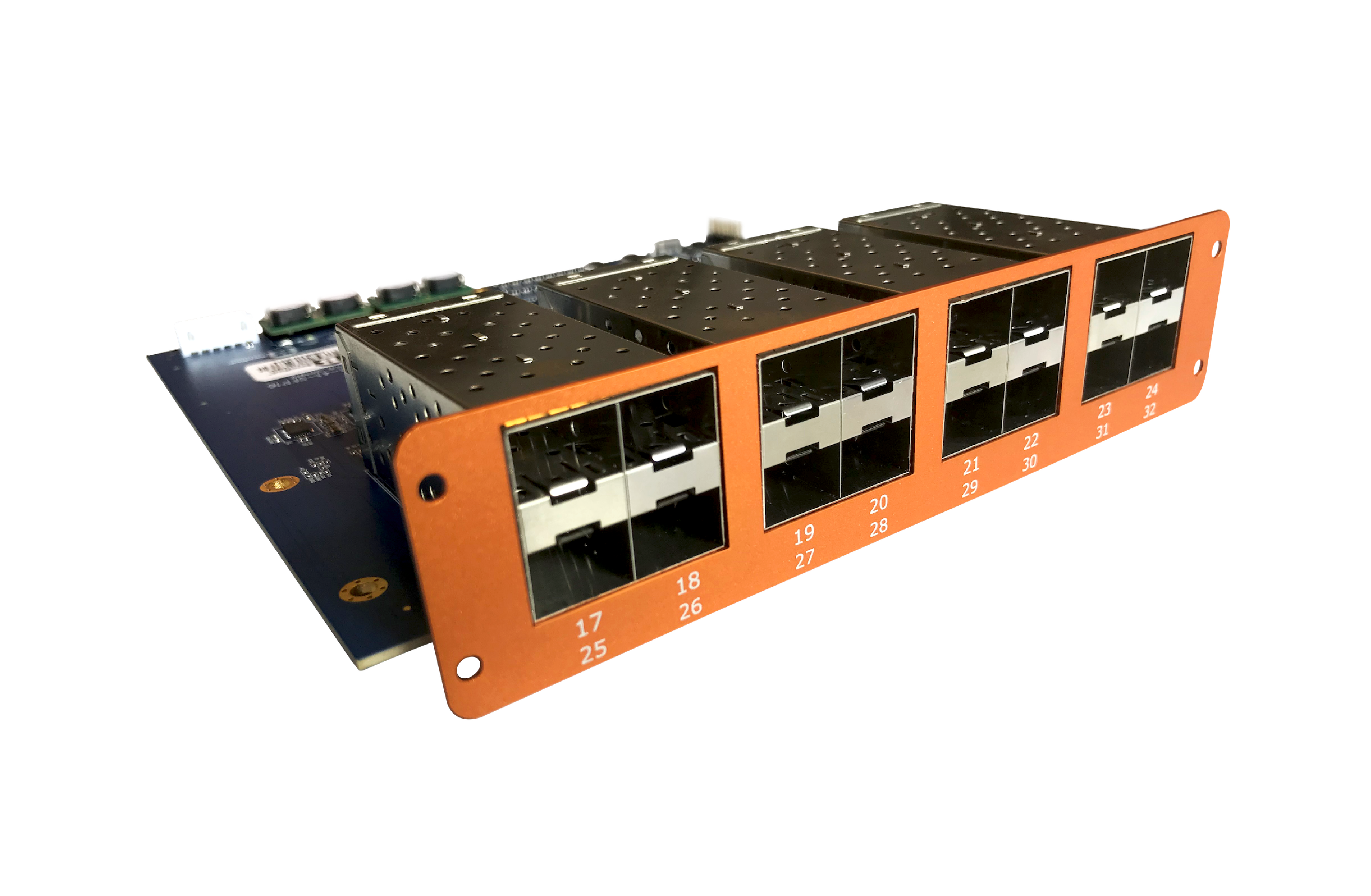

Extension board (BTF1-41)

Adds 16 SFP cages expanding the BTF1-41 capabilities from 16 to 32 transceiver SFP cages.

Technical Specifications

SFP ports
• 16x SFP+ ports (enhanced small formfactor pluggable) for transceivers, MSA and non-MSA compliant, up to 12Gbps
• SMPTE 259M, 292M, 372M, 424M, 297M, ST 2081, ST 2082, DVB-ASI
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules
• Multirate reclocking of outputs 125Mbps – 12Gbps

Power supply
• Provided by BTF1-41 mainframe

Includes:
• BTF1-41-SFP-16 extension board for BTF1-41

Ordering code:
• BTF1-41-SFP-16

Downloads

BTF1-xx Firmware

Using USB / BarnStudio
v2021-02-16-0.5.5
