The BarnOne series

The BarnOne series of signal transport frames provide a 32 x 32 built-in routing system with a combination of BNC and SFP I/O ports to satisfy any application. Several combinations of SFP-ports, BNCs and multiplexer are available.

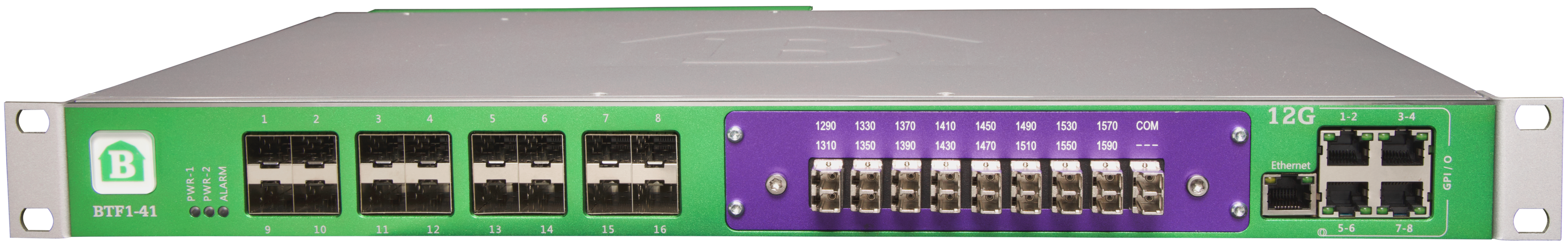

BarnOne – BTF1-41-MUX08/16

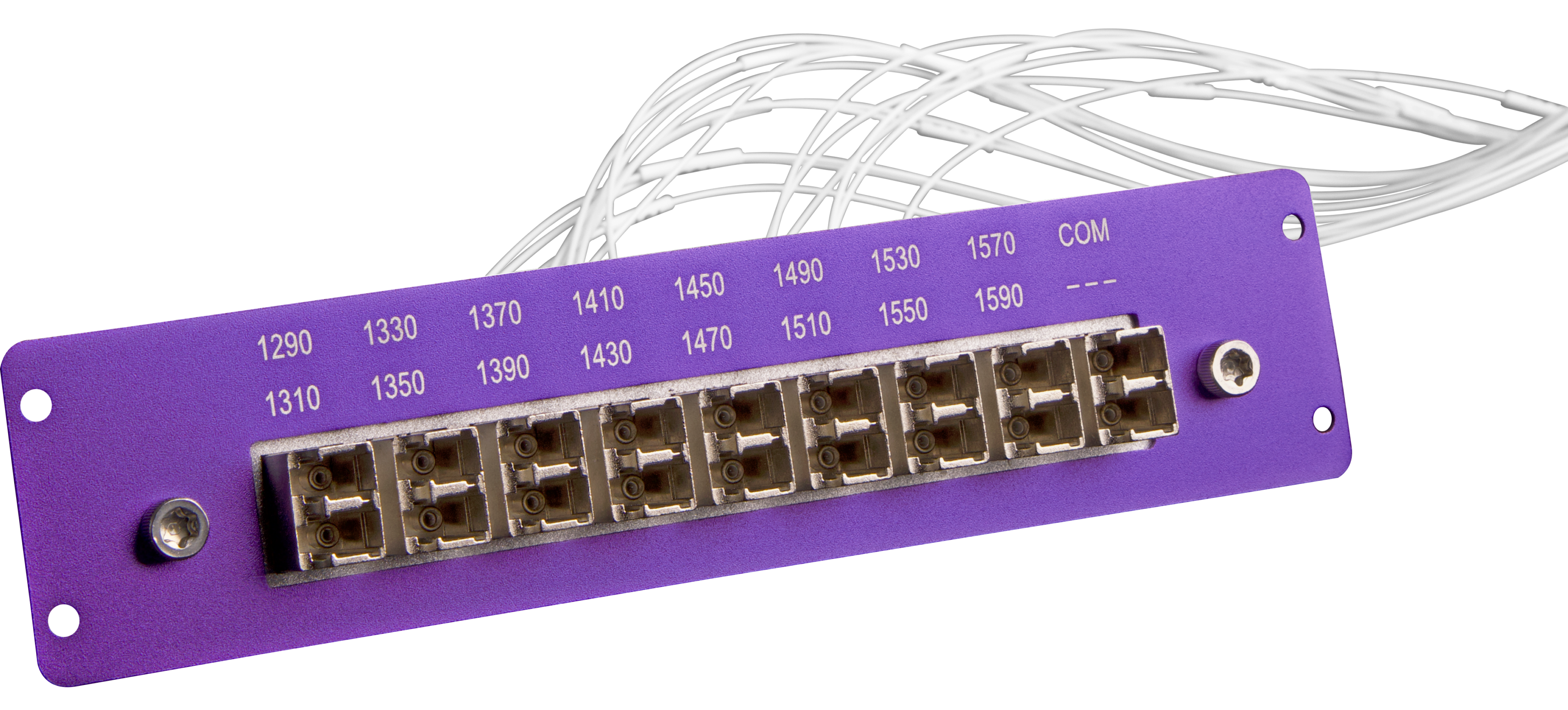

Extension card (BTF1-41)

Internal optical multiplexer to combine multiple signals, regardless of formats and bandwidths into a single fiber. Signals can be transmitted in both directions simultaneously. It is a cost-effective way to increase the capacity and flexibility of the optical network.

Available in 8 or 16 channels CWDM.

Technical Specifications

Optical Ports

  • LC/PC connectors
  • Center Wavelengths according to ITU-T G.694.2
  • Channel center wavelengths 1290 – 1430nm (8 ch.), 1290 – 1590 (16 ch.)
  • Channel clear passband +/- 7nm
  • Insertion Loss 8-ch: -2,5dB; 16-/18-ch: -3,5dB (max.)

Ordering code:

  • BTF1-41-MUX08
  • BTF1-41-MUX16
