The BarnOne series

The BarnOne series of signal transport frames provide a 32 x 32 built-in routing system with a combination of BNC and SFP I/O ports to satisfy any application. Several combinations of SFP-ports, BNCs and multiplexer are available.

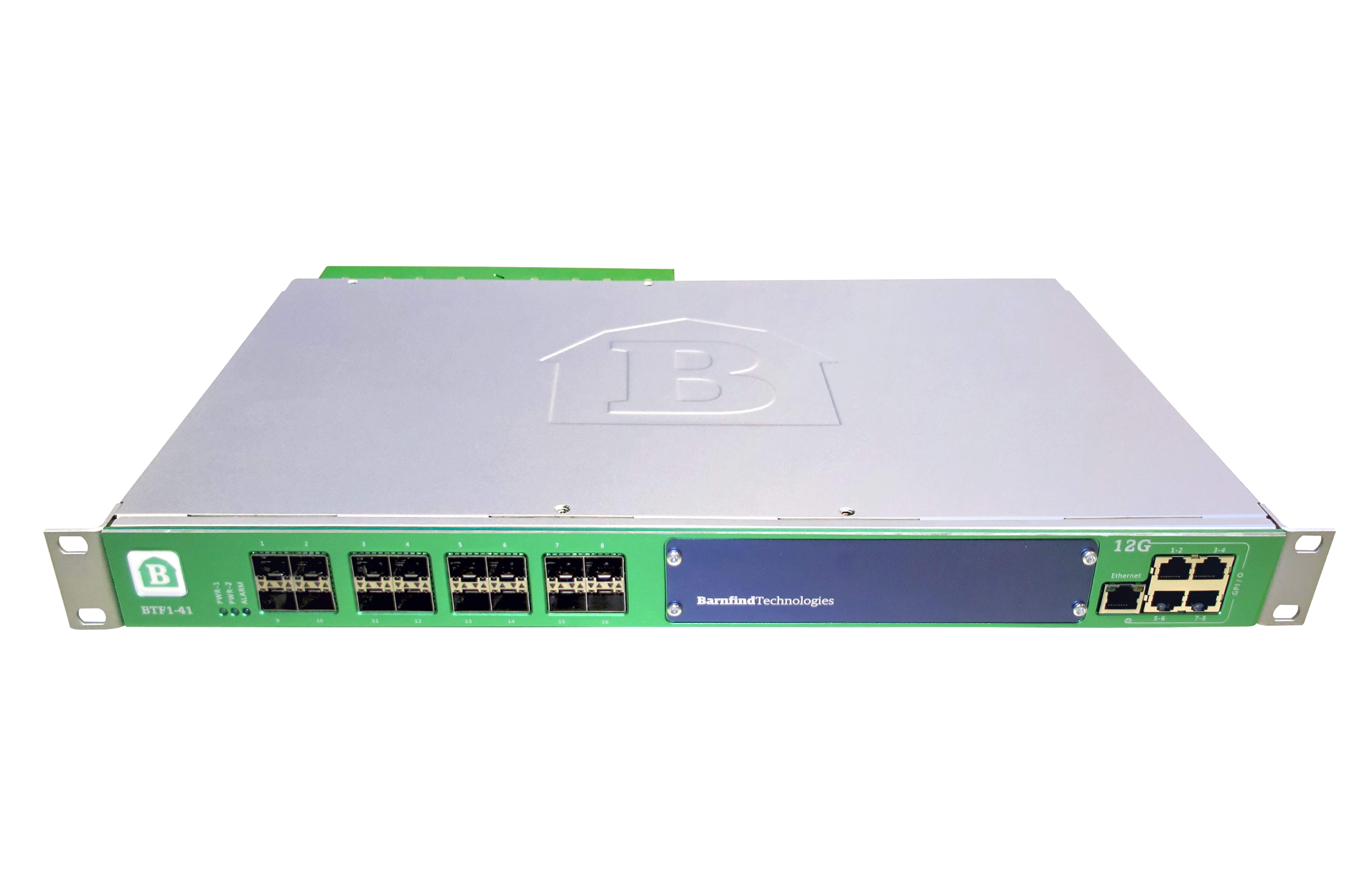

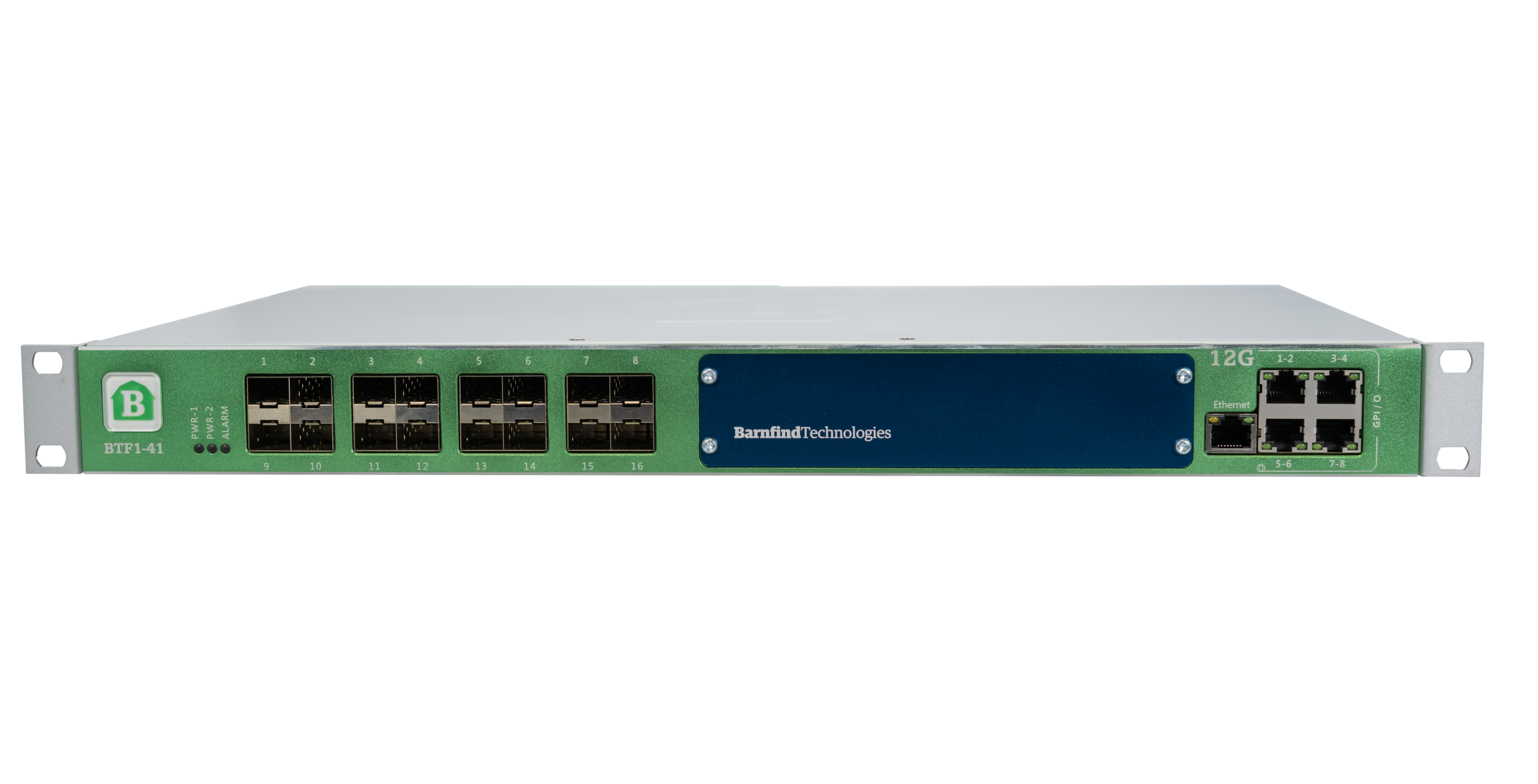

BarnOneBTF1-41 12G

Designed to be the most flexible, rack-space saving and affordable infrastructure platform in the audio, video and communication businesses. Highly compact and equipped with an up to 32×32 cross-point router. Barnfind offer a number of configurations to combine BNC, SFP and CWDM fiber optical multiplexing.

This BarnOne frame accepts both MSA and non-MSA SFPs including optical, SDI copper, HDMI and RJ-45 Ethernet style SFP modules.

Multirate compability with maximum bitrate of up to 12G-SDI and 10G-Ethernet. This meets the demand for 4K video transmissions.

Ideal for optical signal transmission, remote stage box application and small studio style productions.

Technical Specifications

SFP ports
• 16x SFP+ ports (enhanced small formfactor pluggable) for transceivers, MSA and non-MSA compliant, up to 12Gbps
• SMPTE 259M, 292M, 372M, 424M, 297M, ST 2081, ST 2082, DVB-ASI
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules
• Multirate reclocking of outputs 125Mbps – 12Gbps

Extension section
• Slot for extension boards
• Available extension modules: BTF1-41-SFP-16
• 3rd party integrations welcome, please contact support@barnfind.no

Power supply
• 12V DC 120W power supply included
• Redundant power supply optional

Physical size
• 445mm x 280mm x 43,5mm (17.5” x 11” x 1.7”)
• 3.8 kg

Includes
• BTF1-41 mainframe, power supply 12V DC

Ordering code:
• BTF1-41

Downloads

BarnStudio

v1.0.6.2 (19th of August 2021)

BTF1-xx Firmware

Using USB / BarnStudio
v2021-02-16-0.5.5

Accessories

=

BTF1-41-SFP-16

=

BT-PSU-100-240AC

=

BT-EXT-PAIR-5CM

=

BTF1-TRAY-PSU

=

BC-BTF1-EXTRA-3

=

Find all our accessories here.

Download product list.

See our product video.

BarnMini solve everything from a simple task to the more comprehensive solutions where the BarnMini’s are used in conjunction with BarnOne’s to make complete distributed systems in lager facilities.
