The BarnOne series

The BarnOne series of signal transport frames provide a 32 x 32 built-in routing system with a combination of BNC and SFP I/O ports to satisfy any application. Several combinations of SFP-ports, BNCs and multiplexer are available.

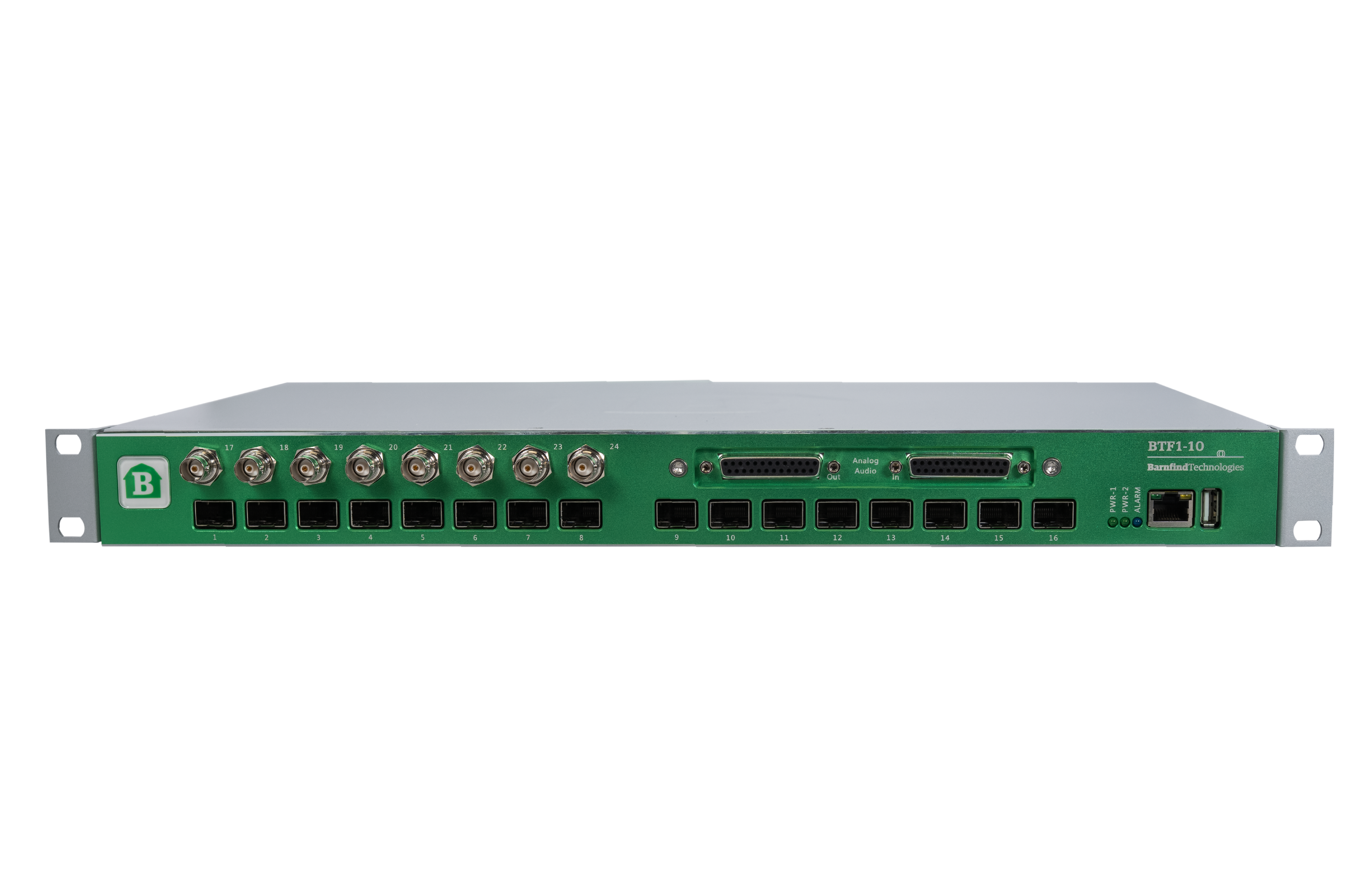

BarnOneBTF1-10AA

Designed to be the most flexible, rack-space saving and affordable infrastructure platform in the audio, video and communication businesses. Highly compact and equipped with an up to 32×32 cross-point router. Barnfind offer a number of configurations to combine BNC, SFP and CWDM fiber optical multiplexing.

This BarnOne frame accept SFPs following the MSA standard – this includes optical, SDI copper, HDMI and RJ-45 Ethernet style SFP modules

The BTF1-10-AA includes all the features of the BarnOne frame series. Adding 8+8 balanced analog line level audio, a 264×264 channel audio matrix and 4+4 MADI interfaces. These are connected to the main 32 x 32 matrix of the BarnOne frame.

Ideal for optical signal transmission, remote stage box application and small studio style productions.

Technical Specifications

Audio ports
Analog Ports
• 8x balanced analog line inputs (DB25), individually configurable +18dBu/+24dBu (default setting: +18dBu)
• 8x balanced analog line outputs (DB25), individually configurable +18dBu/+24dBu (default setting: +18dBu)

A/D Converter
• THD -115dB
• SNR -115dB unweighted
• THD+N -108dB

D/A Converter
• SNR -115dB
• THD+N -107dB

MADI Ports
• 4x MADI (AES10) inputs internally connecting to main matrix
• 4x MADI (AES10) outputs internally connecting to main matrix
• Sample rate 44.1kHz/48kHz (1FS), 2FS supporting 88.2kHz/96kHz
• Synchronisation to one of the MADI ports or to internal clock 44.1kHz/48kHz
• Single channel routing for all MADI ports and analog I/O

Electrical ports
• 8x bi-directional BNC ports
• 75 OHM BNC connector
• SMPTE 259M, 292M, 372M, 424M, DVB-ASI
• Multirate reclocking of outputs 270Mbps – 3Gbps
• Automatic cable EQ (Belden 1694A) 270Mbps-250m, 1.5Gbps-140m, 3Gbps-80m

SFP ports
• 24x SFP ports (small formfactor pluggable) for transceivers, MSA compliant, up to 3Gbps
• SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules
• Multirate reclocking of outputs 270Mbps – 3Gbps

CWDM Mux & Demux
• 8/16 optical channels
• Center wavelengths according to ITU-T G.694.2
• Channel center wavelength 1290~1590 nm
• Channel clear passband ITU +/- 7 nm
• Insertion loss 8ch-2.5dBm, 16ch-3.5dBm (max)
• Passband ripple 0.5dBm (max)
• Adjacent channel isolation 30dBm (min)
• Non-adjacent channel isolation 45dBm (min)
• Return loss 45dBm (min)
• Directivity 45dBm (min)
• Polarization dependent loss 0.1dBm (max)
• Operating temperature range -20C to +70C (optional -40C to +85C)
• Storage temperature handling – 40 to + 85C
• Maximum power handling 300mW

Power supply
• 12V DC 120W power supply included
• Redundant power supply optional

Physical size
• 445mm x 280mm x 43,5mm (17.5” x 11” x 1.7”)
• 3.8 kg

Includes
• BTF1-10AA mainframe, power supply 12V DC

Ordering code:
• BTF1-10AA

Downloads

BarnStudio

v1.0.6.2 (19th of August 2021)

BTF1-xx Firmware

v2021-09-08-0.5.10

Accessories

=

BT-PSU-100-240AC

=

BT-EXT-PAIR-5CM

=

BTF1-TRAY-PSU

=

BC-BTF1-EXTRA-3

=

Find all our accessories here.

Download product list.

See our product video.

BarnMini solve everything from a simple task to the more comprehensive solutions where the BarnMini’s are used in conjunction with BarnOne’s to make complete distributed systems in lager facilities.
