The BarnMini series

The BarnMinis are ideal for standalone solutions and solve everything from a simple task to more comprehensive solutions. BarnMinis can be used in conjunction with other Barnfind products to empower complete distributed systems in larger facilities.

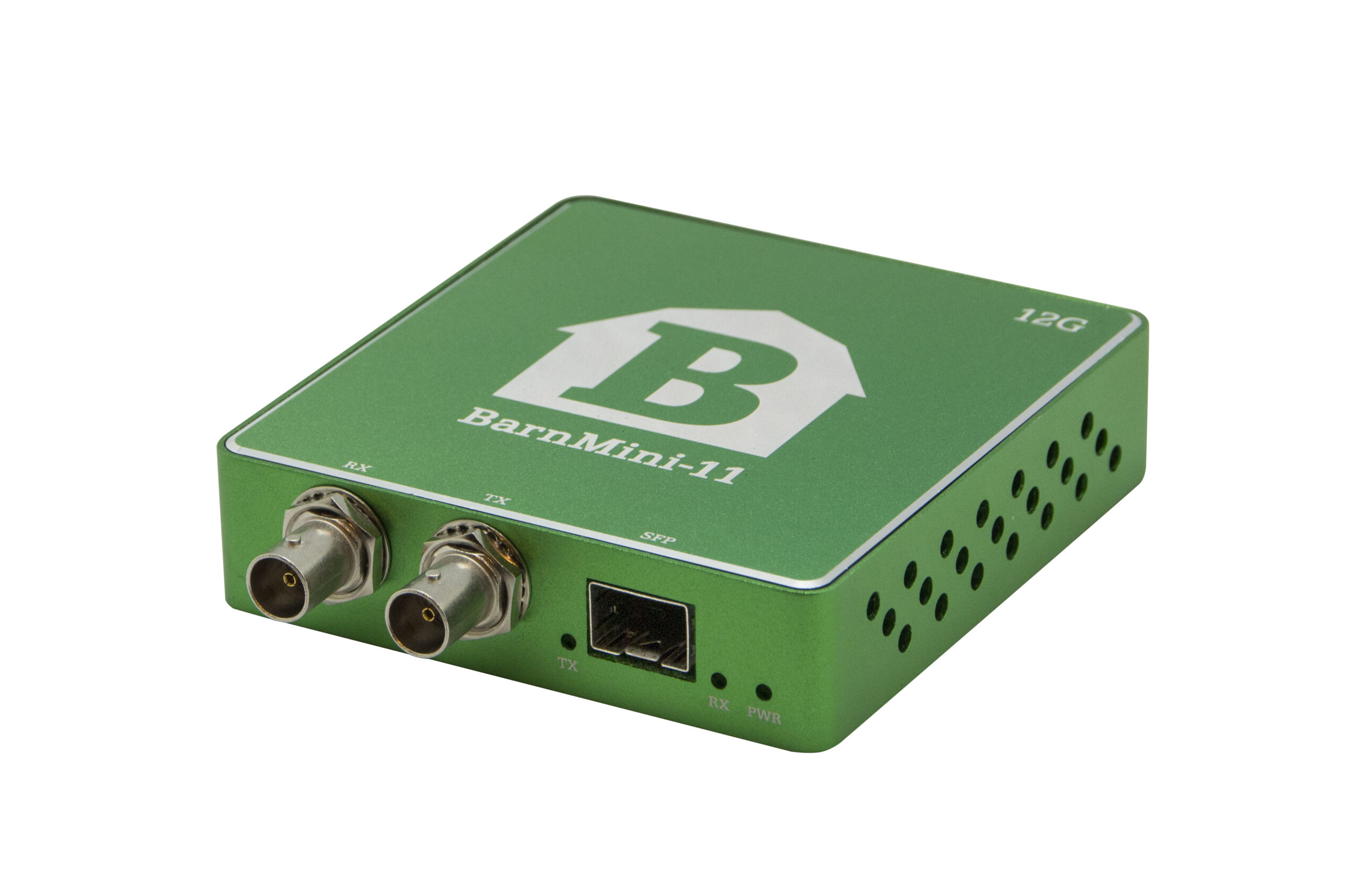

BarnMini11 (12G)

BNC to SFP converter

The BarnMini series are made of robust materials in an elegant design. This is the most popular BarnMini. BarnMini-11 is the heir of BarnMini-01, increasing the maximum bandwidth up to 12G-SDI used by 4K video.

BarnMini-11 converts signals in both directions. Depending on the SFP being used, it converts signals to/from SDI – optical, Analog Video – SDI, HDMI – SDI.

All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.

Technical Specifications

Electrical ports
• 1x TX BNC port
• 1x RX BNC port
• 75 OHM BNC connector
• SMPTE 258M, 292M, 372M, 424M, DVB-ASI, SMPTE ST-2081, ST-2082
• Multirate reclocking of outputs 270Mbps – 12Gbps

Optical ports
• 1x SFP+ port (small formfactor pluggable) for transceivers, MSA compliant, up to 12Gbps
• SMPTE 259M, 292M, 372M 424M, 297M, DVB-ASI, SMPTE ST-2081, ST-2082
• Multirate reclocking of outputs 270Mbps – 12Gbps
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules

Power supply
• 12-24V DC, power supply included

Physical size
• 92mm x 98mm x 22mm
• 200g

Ordering code:
• BarnMini-11

Downloads

Accessories

=

BT-Mini-PSU

Spare PSU for BarnMini series (stand-alone)

=

The BarnMini frame

BTF-Mini-16, is a housing with space for up to 16 x BarnMini modules of any kind.

=
