The BarnMini series

The BarnMinis are ideal for standalone solutions and solve everything from a simple task to more comprehensive solutions. BarnMinis can be used in conjunction with other Barnfind products to empower complete distributed systems in larger facilities.

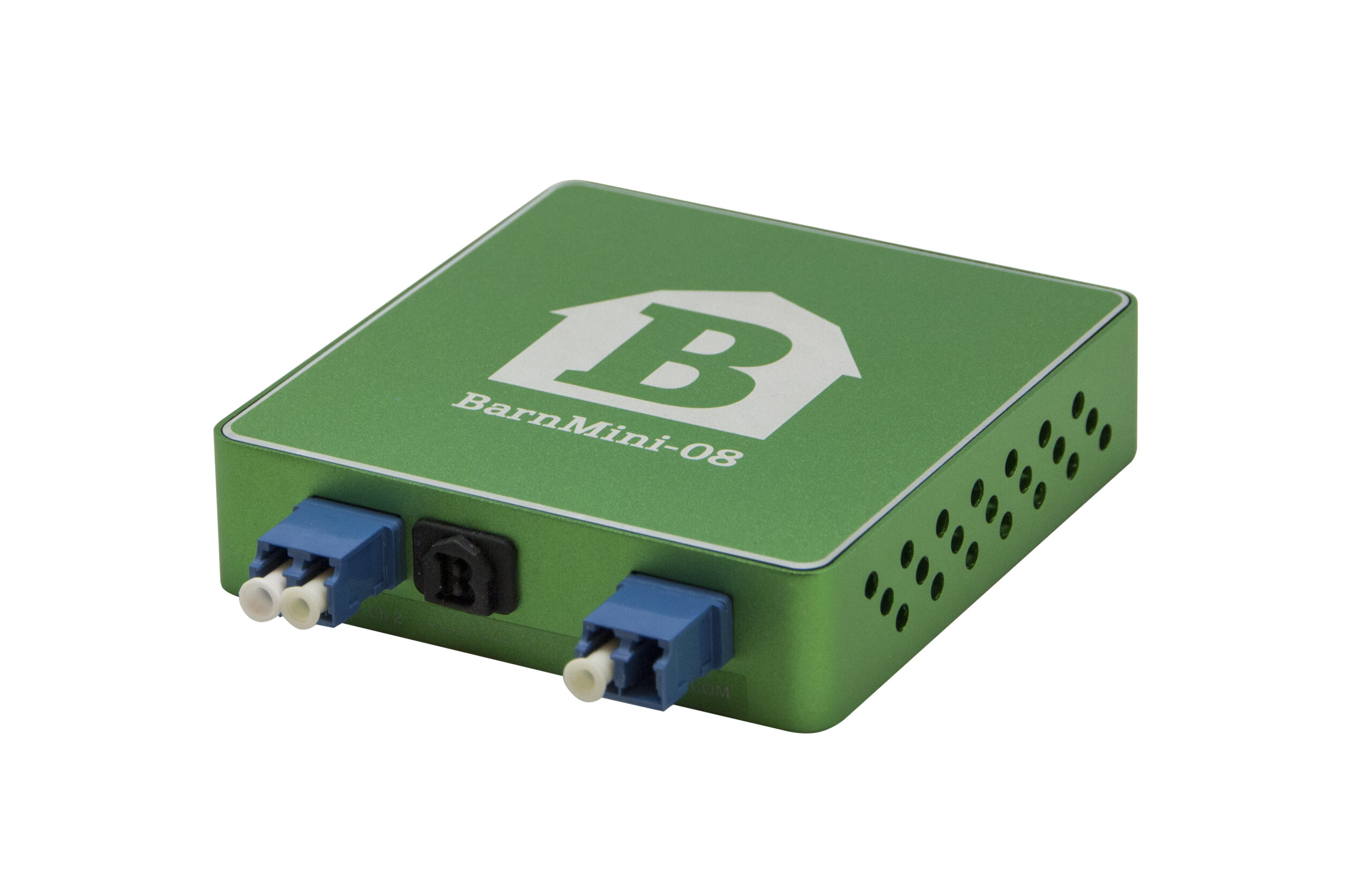

BarnMini08

Optical splitter

The BarnMini series are made of robust materials in an elegant design. BarnMini-08-1:2 and BarnMini-08-1:4 are devices that split the optical signal into 2 or 4 identical copies.

Typical use cases are distribution or signal duplication for redudancy; usually combined with CWDM optical multiplexers for maximum utilization of the fibers.

All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.

Technical Specifications

Optical ports
• LC/PC connectors
• BarnMini-08-1:2: Insertion Loss <1,2dB + 3dB
• BarnMini-08-1:4: Insertion Loss <1,2dB + 6dB
• Adjacent Channel Isolation >35dB
• Non-Adjacent Channel Isolation >45dB
• Polarisation dependant loss <0,10dB

Physical size
• 92mm x 98mm x 22mm
• 200g

Ordering code:
• BarnMini-08-1:2
• BarnMini-08-1:4

Downloads

Accessories

=

BT-Mini-PSU

Spare PSU for BarnMini series (stand-alone)

=

The BarnMini frame

BTF-Mini-16, is a housing with space for up to 16 x BarnMini modules of any kind.

=
