The BarnMini series
The BarnMinis are ideal for standalone solutions and solve everything from a simple task to more comprehensive solutions. BarnMinis can be used in conjunction with other Barnfind products to empower complete distributed systems in larger facilities.

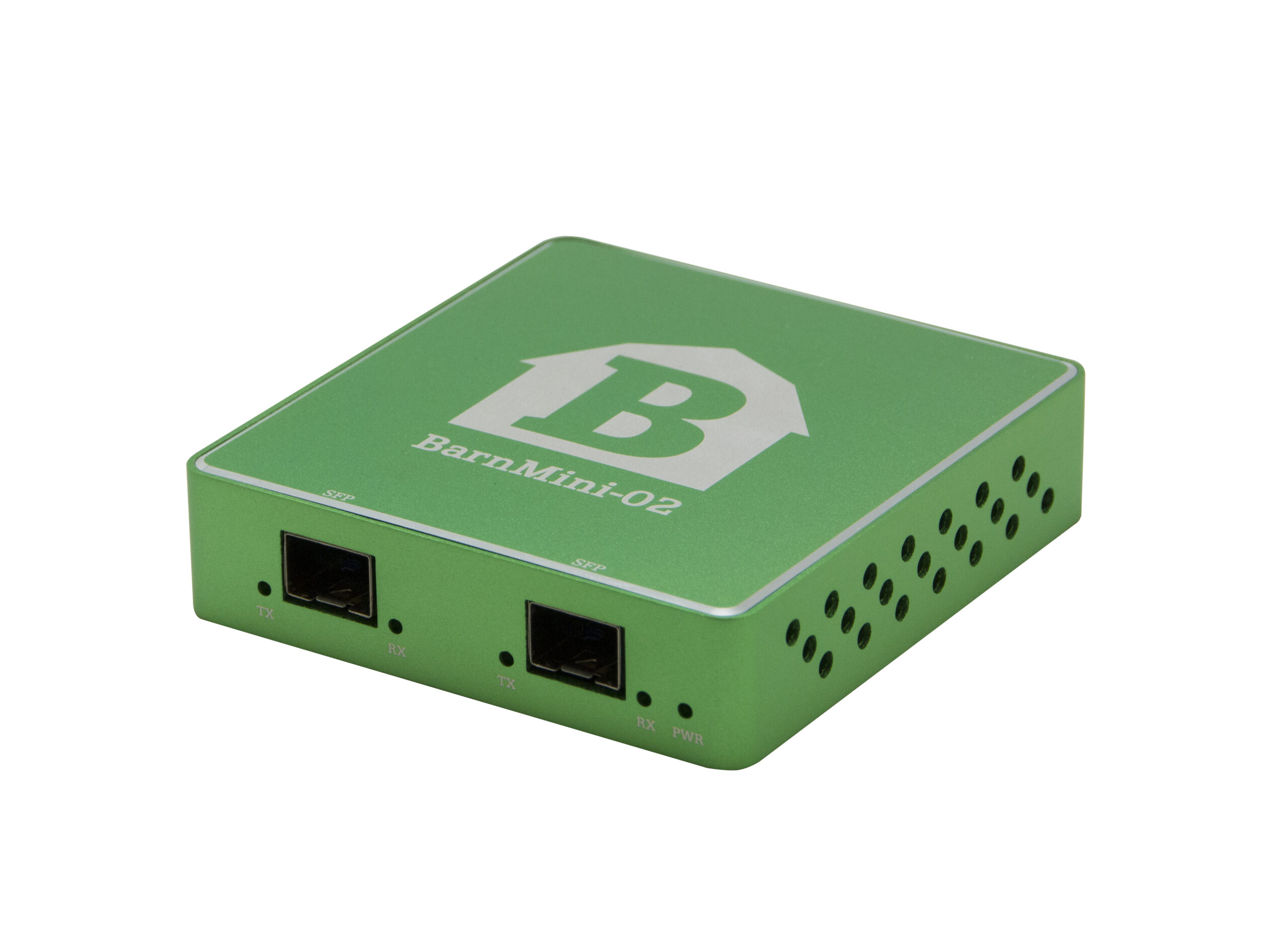

BarnMini – 02
The BarnMini series are made of robust materials in an elegant design. BarnMini-02 can be used for fiber conversion between multimode and single mode, Ethernet to fiber, CWDM fiber color conversion or any other combination of signals depending on the SFP selections.
BarnMini-02 is a “Norwegian army knife” – application can be changed on the fly by replacing the SFPs.
All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.
BarnMini-02 is not a stocked item and is only available by special requests. Please use the successor BarnMini-22 which is capable of up to 12G-SDI signals.
Technical Specifications
Electrical ports
• 2x SFP ports (small formfactor pluggable) for transceivers, MSA compliant, up to 3Gbps
• SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI
• Multirate reclocking of outputs 270Mbps – 3Gbps
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules
SFP port
• 1x SFP port (small formfactor pluggable) for transceivers, MSA compliant, up to 3Gbps
• SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI
• Multirate reclocking of outputs 270Mbps – 3Gbps
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules
Power supply
• 12-24V DC, power supply included
Physical size
• 92mm x 98mm x 22mm
• 200g
Ordering code:
• BarnMini-02
Downloads
BarnGuide
3.0
Accessories
BT-Mini-PSU
Spare PSU for BarnMini series (stand-alone)
The BarnMini frame
BTF-Mini-16, is a housing with space for up to 16 x BarnMini modules of any kind.
