The BarnColor series

– Simplicity to Perfection

Designed to be a cost-effective solution for sending and receiving multiple signals both directions over an opticalCON DUO fiber cable, BarnColor is the newest product line from Barnfind Technologies. Simple to use and easy to set up, we have taken all the complication away from fiber transport setup. – no technical knowledge or experience required.

Plug and play – Save time and money for on-site rigging

  • No Latency
  • No Compression
BarnColor 4x12G SDI Green
BarnColor 4x12G SDI Purple
BarnColor 4x12G SDI Red
BarnColor 4x12G SDI Blue

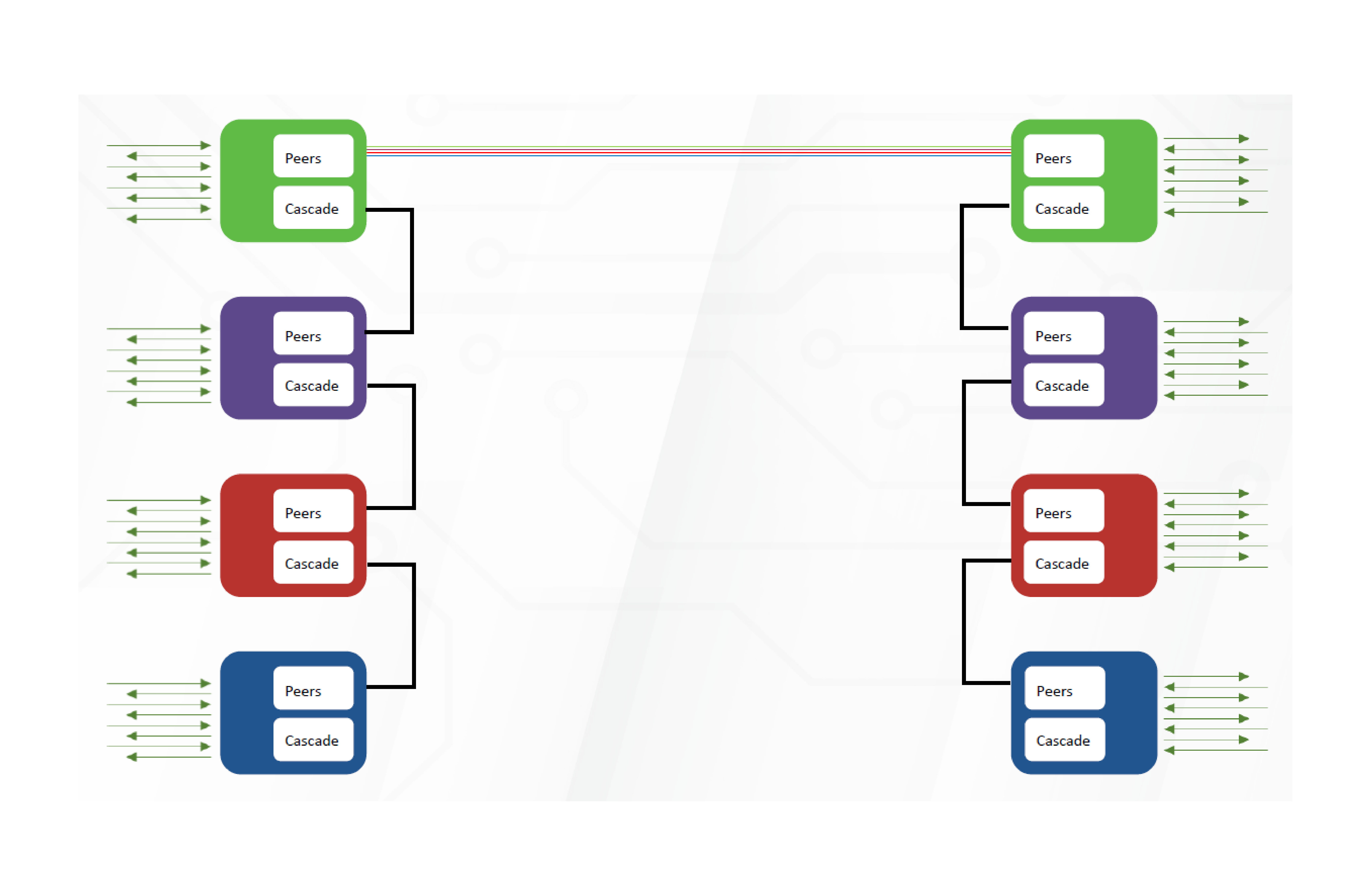

Diagram showing how to connect Peers and Cascade
BarnColor-4xSFP-Flex BarnColor-4x3G-SDI BarnColor-4x12G-SDI BarnColor-4xEth-PoE 1x pair of Single mode fiber

The BarnColor – 4x12G-SDI

Designed to be a cost-effective and easy-to-deploy solution for transmitting multiple video signals both directions on a single fiber cable up to 10km distance. BarnColor allows you to handle up to 32 x 12G-SDI signals (16 forward and 16 returns). Each BarnColor device handles up to 8 signals (4 forward and 4 returns) and up to 4 different colors can be daisy chained. This flexible system is easy to install, upgrade and use. It is well suited for both fixed and temporary installations. Can be combined with any models in different colors.

Compatibility

The BarnColor devices can be installed in colored pairs or used as satellites together with a BarnOne system. If building a pure BarnColor system you can start with any color-matching pair and extend the system later as your need expands. You can combine different models of BarnColors or use multiple of the same model in the same system as long as the colors are different.

We recommend using single mode fibers when linking the BarnColor devices.



USD 5140,- / Unit EXW Norway
Landed pricing may differ for markets outside Norway

Back to the BarnColor overview

Technical Specifications

BNC-Ports
• SMPTE 258M, 292M, 372M, 424M, DVB-ASI, SMPTE ST-2081, ST-2082
• Multirate reclocking of outputs 270Mbps – 12Gbps

Fiber port
• Neutrik opticalCON DUO, also compatible with duplex Single Mode fiber LC-LC
• SMPTE 297M

Power plug
• Neutrik powerCON or TRUE1
• 100-240VAC, 15Watt

Physical size
• 223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”)
• 1.4 kg

Order codes:
• BarnColor-12G-SDI-G – Green position
• BarnColor-12G-SDI-P – Purple position
• BarnColor-12G-SDI-B – Blue position
• BarnColor-12G-SDI-R – Red position
• BC-PowerCable-EU – 220VAC Europe/Schuko (Hybrid CEE 7/7 plug)
• BC-PowerCable-US – 110VAC US (NEMA 5-15 grounded (Type B)

Downloads

Manual BarnColor 12xSDI

User Manual

BarnGuide

3.0

BarnColor Flyer
